Molded for Success

As a low- to medium-volume specialty plastic injection and cast urethane manufacturer, Boneal Custom Molding (BCM) specializes in complex and technically challenging parts. Whether it involves thin wall parts, insert molding, or high performance polymers such as Ryton or Ultem, BCM delivers.

The BCM Quality Management System is structured around the ISO 9001 standard and designed to consistently provide products that meet stringent customer requirements and applicable regulations. Our system of continual improvement, as well as our assurance of conformity to requirements, enhances our customers’ satisfaction and success.

As one part of the Boneal Holdings family, BCM collaborates within a community of resources, capabilities, and expertise to produce dependable, repeatable, and beneficial products and services.

CUSTOM MOLDING CAPABILITIES

BCM in-house injection molding presses have capabilities ranging from 90-310 tons and shot sizes from 6.4-40 ounces, but through our working partnerships with an extended network of trusted manufacturers, we have built the capacity to press up to 1,000 tons together with a shot size capability of 148 ounces.

Our ability to work with complex slide mechanisms and hot runner systems enables us to produce complicated-part geometrics. Every step of the process is tightly controlled and strictly overseen, from precisely controlling plastic melt and mold cooling, to the regulation of water temperature and flow through the mold. The result is a product that is both tested and trusted to last.

Mold Design & Build

With over 100 years of collective experience, BCM expertly designs, develops, and builds the most cost-effective tool to produce your parts.

Insert Building & Over Molding

We take pride in our ability to do close tolerance insert molding, which involves placing a core or “insert” into the mold and molding plastic around this part.

Cast Urethane

Manufactured using high-performance resins, curatives and additives, our cast urethane products can be manufactured in almost any hardness or shape.

Clients Served

Boneal Custom Molding Successes

Boneal custom molding deilvers ahead of schedule

Customer Need:

A mold to produce a dule-pulley shell roller for the U.S. Postal Service mail handling system.

Project summary:

In Octover 2001 the U.S. Postal Service contact Boneal Custom Molding to have a new mold built to replace the current mold that had been damaged beyond repair. The Postal Service requested that the new mold and sample parts be completed and submitted to them in 8 weeks.

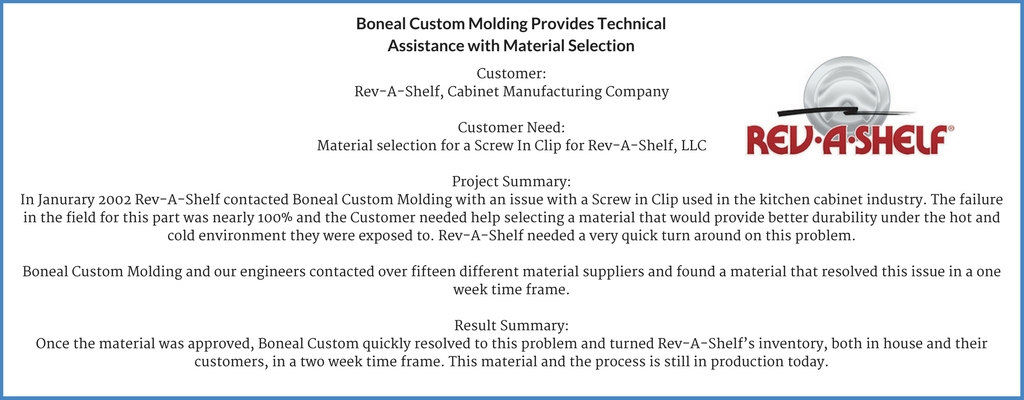

Boneal Custom Molding Provides Technical Assistance with Material Selection

Customer Need:

Material selection for a Screw In Clip for Rev-A-Shelf, LLC

Project summary:

In January 2002 Rev-A-Shelf contacted Boneal custom molding with an issue with a Screw in Clip used in the kitchen cabinet industry. The failure in the field for this part was nearly 100% and the Customer needed help selecting a material that would provide better durability under the hot and cold environment they were exposed to. Rev-A-Shelf needed a very quick turn around on this problem.

Boneal Custom Molding and our engineers contacted over fifteen different material suppliers and found a material that resolved this issue in a one week time frame.

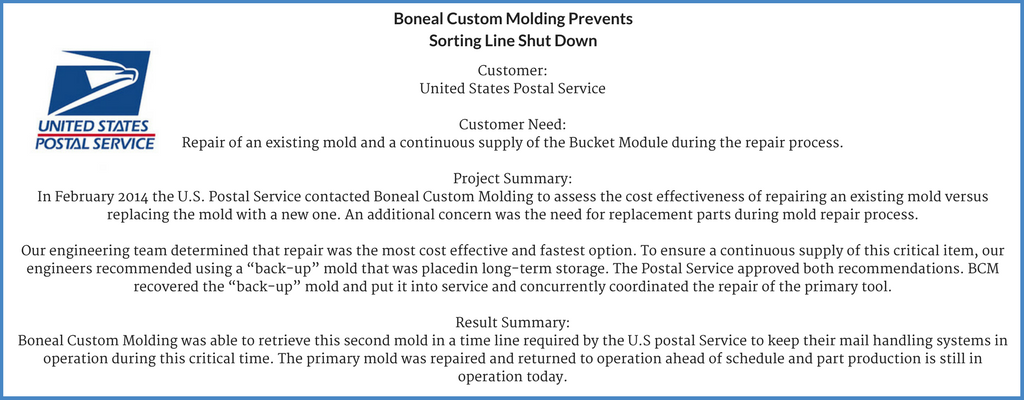

Boneal Custom Molding Prevents Sorting Line Shut Down

Customer Need:

Repair of an existing mold and a continuous supply of the Bucket Module during the repair process.

Project summary:

In February 2014 the U.S. Postal Service contacted Boneal Custom Molding to assess the cost effectiveness of repairing an existing mold versus replacing the mold with a new one. An Additional concern was the need for replacement parts during the mold repair process.

Our engineering team determined that repair was the most cost effective and fastest option. To ensure a continuous supply of this critical item, our engineers recommended using a "back-up" mold that was placed in long-term storage. The Postal Service approved both recommendations. BCM recovered the "back-up" mold and put it into service and concurrently coordinated the repair of the primary tool.

Meet the Machines

310 Ton Toshiba

Injection Capacity – 40 oz.
Platen Size – 35.4 “ x 35.4”
Distance between Tie Bars – 24”

120 Ton Nissei

Injection Capacity – 7.5 oz.
Platen Size – 25.5 “ x 25.5”
Distance between Tie Bars – 18”

120 Ton Nissei

Injection Capacity – 7.5 oz.
Platen Size – 25.5 “ x 25.5”
Distance between Tie Bars – 18”

250 Ton Toshiba

Injection Capacity – 40 oz.
Platen Size – 31.9 “ x 31.9”
Distance between Tie Bars – 22”

250 Ton Toshiba

Injection Capacity – 30 oz.
Platen Size – 31.9 “ x 31.9”
Distance between Tie Bars – 22”

Leadership

Dr. Gary Minton, Ph.D.

Dr. Gary Minton currently serves as the Business Unit Owner of Boneal Custom Molding. He is responsible for planning, coordinating and executing the functional activities related to the injection molding production unit.

Gary takes great pride in providing customers a product that exceeds expectations at a reasonable cost. He does this all the while making decisions based on what is best for profitability and long term growth of the business.

Prior to his current role Dr. Minton served in numerous roles in the Boneal organization. He joined Boneal in 1998 as the Operations Manager of the newly formed precision metal fabrication unit. He very successfully guided the metal fab business to technical and financial viability. In 2007, he assumed the position of Senior Engineer with Boneal Custom Molding

Before joining the Boneal Management team, Dr. Gary Minton worked in the ammunitions & firearms industry, serving in both Metallurgical Engineering & Production Management positions.

Dr. Minton holds a Ph.D. in Material Science from the University of Kentucky, a M.S. Physics degree from the University of Kentucky, and a B.S. in Chemistry from the University of the Cumberlands in Williamsburg, KY.
